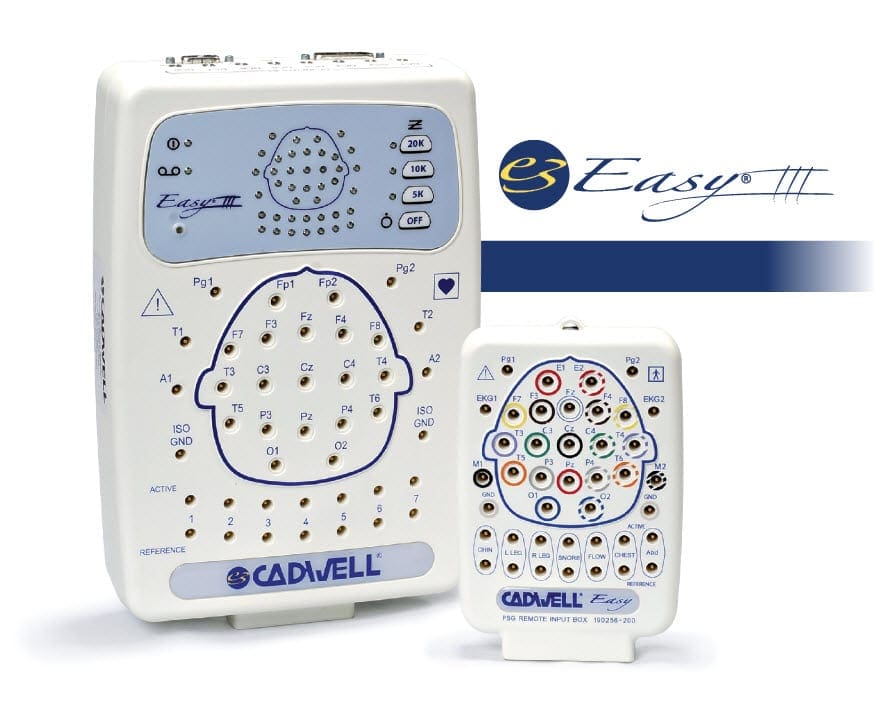

Easy 3 / Easy III PSG amplifier and remote input box

Streamline your sleep diagnostic testing with integrated PSG and HSAT

Initialize, record, score and review both HSAT and PSG, performing all of your sleep diagnostics using one efficient software and workflow.

Easy III PSG offers

Resources

  • Crystal clear signals with the 4kHz sampling rate
  • Advance Bilevel Modalities
    • AVAPS
    • iVAPS
    • AdaptSV
    • AutoSV
  • Intuitive oximetry messaging for better troubleshooting during recordings
  • Better data management with Auto-Archiving
  • Bedside impedance checks

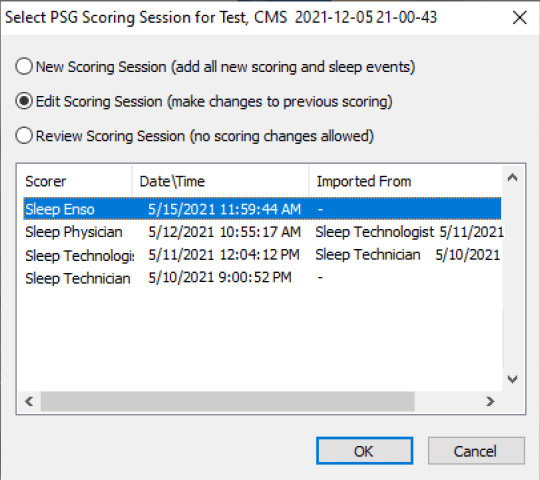

  • Improved sleep scoring workflow
    • Better paging at 120 or 300 seconds/page
  • A compact and lightweight color-coded remote headbox that protects the amplifier from accidental drops during the night. This ensures recording integrity and provides patient convenience. Amplifier inputs remain active even when using the headbox.

Designed for kids of all ages

  • Configure software for pediatric and neonatal patients
  • Interface with a wide variety of external oximetry, carbon dioxide and pH monitors
  • Record enough channels for nocturnal seizure montages
  • Capture high quality video to validate the trace data during acquisition and review

Monitor your way, anywhere

Access all stored data as well as live recordings from anywhere via Citrix. Build physician worklists so you know which studies you’ve already done and which studies need to be completed.

PSG Amplifier Specifications

  • Channels: 32 (7 Active/Ref pairs)
  • DC: 8(+10V to -10V)
  • EasyNet: Connect up to 12
  • Connection: 1.5mm touchproof
  • Sampling: 4 kHz (200 Hz DC)
  • Storage: 250 Hz (200 Hz DC)
  • Noise: <2 μV
  • Sensitivity: 0.5 – 1000 μV/mm
  • LFF: 0.032 – 10 Hz
  • HFF: 1 – 100 Hz
  • Notch: 50 or 60 Hz
  • Dimensions (H x W x D):
    • 4.5 x 23 x 15 cm
    • 1.8 x 9.1 x 5.9 in

EasyNet Modules

Place your signals at the amplifier or on the patient with EasyNet Patient Modules for nasal pressure, oximetry, body position, and limb movement actigraphy.

EasyNet Patient Modules for nasal pressure, oximetry, body position and limb movement during PSG

Workspace Configurations

Whether you view and review from a single computer monitor or a dual screen, the software is flexible to fit your workspace.

Clinically-Focused Reports

  • Flexible and configurable templates let you build your reports the way you want them
  • Make your workflow more efficient by instantly sending results to your EMR via HL7Link
  • Highly detailed titration reports provide more insight into complex patients

Product availability may vary in different countries. Please contact Cadwell for additional information.
